Automatic winding machine PX500D
Automatic winding machine » PX500D

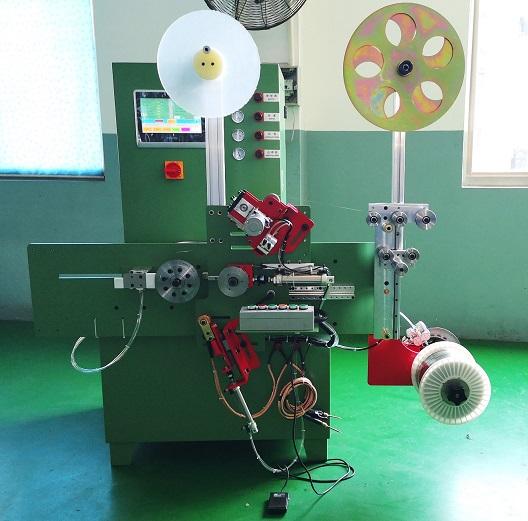

Pictures available of Automatic winding machine:


Automatic winding machine

PX500D Automatic Winding machine is updated from PX500C model, it’s our newest model for manufacturing spiral wound gasket form 1/2” to 12”. Although it can produce maximum diameter up to 500mm, but recommend to produce up to 10” or 12”. For bigger size, we suggest you choose our horizontal winding machine. On base of PX500C model, PX500D has updated many main parts like PLC, touch screen, servo driver, and welding control parts, the program is also updated. PX500D has improved a lot in production speed, machine steadiness, welding quality, and gasket finish. PX500D is the most popular and important machine for spiral wound gasket manufacturing.

Enquiry Now

Automatic winding machine Details





Automatic winding machine for SWG


Working mode

Both Manual and Automatic mode


SS strip

both pre-formed SS strip in pancake or 20-25kgs spool of flat strip


Producing ability

Standard package including models for 1"-10" 150# SWG with or without inner ring, other size model on request with extra charge


SWG thickness

4.5mm (also suitable for 3.2 and 6.4mm after changing roller parts with extra change, V shape winding or W shape winding for option)


Automatic function

PLC size controlling, Automatic spot welding, with SS strip forming roller, Automatic SS strip cutting.


Maximum gasket OD



Minimum gasket ID



Gasket OD tolerance



Spindle speed



Total power



Spindle motor power



Welder power



Power supply voltage

380V or 220V for option, 3 phases



0.6-0.8 MPA





Production rate

18-25s /pc    (for ANSI 6" 150LB)


Machine measurement



Machine net weight
